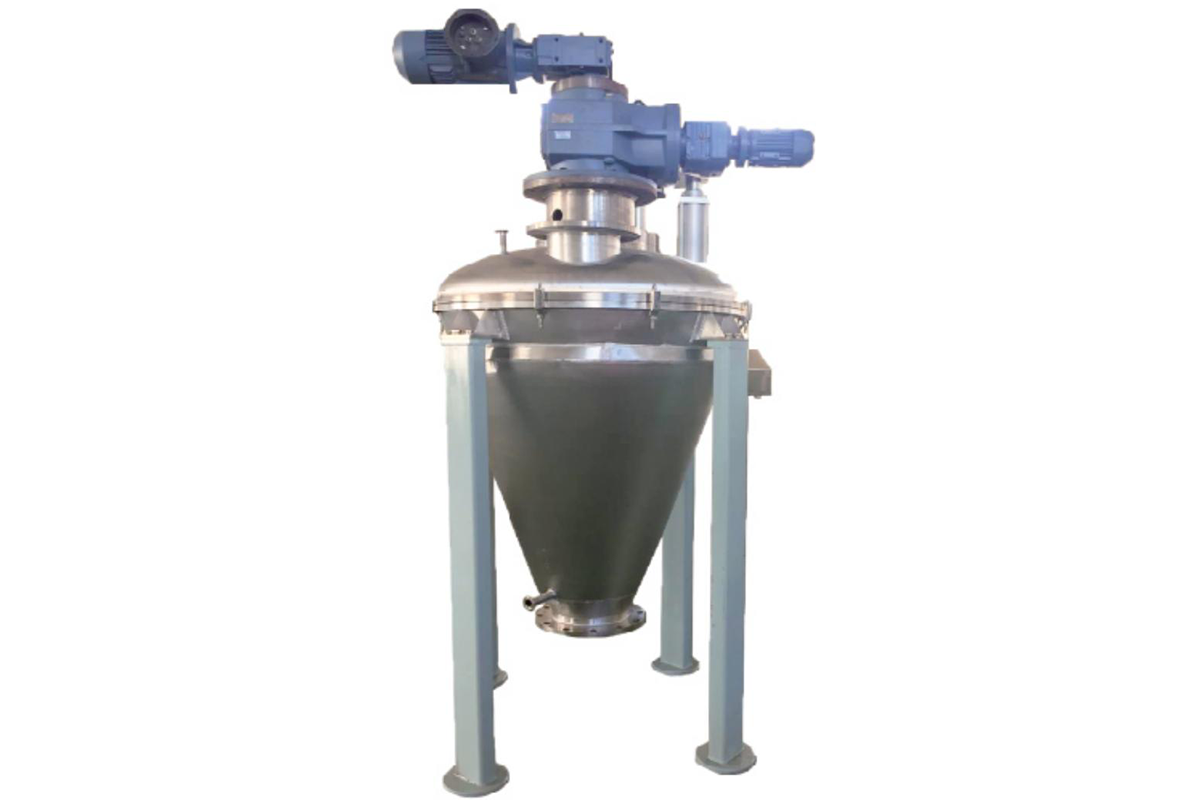

ZG Model Conical
Double Helix Mixing Dryer

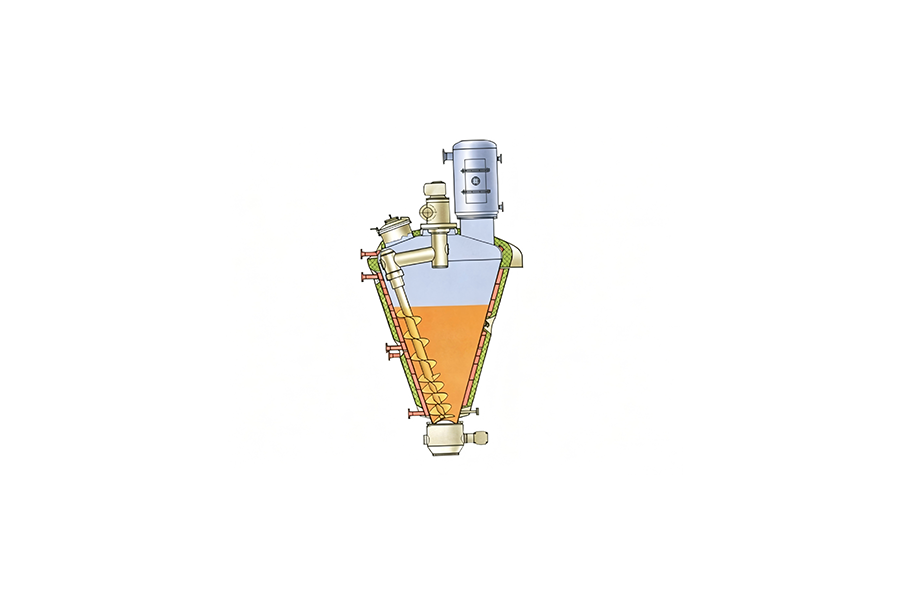

The ZG model conical mixing dryer is primarily used for the efficient mixing and drying of powder and granular materials. The equipment utilizes an external jacket for steam heat exchange, while the internal double (single) helix device rotates and revolves to continuously flip the materials both vertically and globally. This achieves thorough mixing and significantly shortens the drying time. Its fully enclosed structure and top dust collector design effectively prevent steam leakage, dust emission, and material loss, ensuring a safe and continuous production process.
PRODUCT INTRODUCTION
The ZG model conical mixing dryer is primarily used for the efficient mixing and drying of powder and granular materials. The equipment utilizes an external jacket for steam heat exchange, while the internal double (single) helix device rotates and revolves to continuously flip the materials both vertically and globally. This achieves thorough mixing and significantly shortens the drying time. Its fully enclosed structure and top dust collector design effectively prevent steam leakage, dust emission, and material loss, ensuring a safe and continuous production process.
TECHNICAL HIGHLIGHTS
1. High-Precision Blending: The mixing accuracy reaches up to 1:100,000. It perfectly blends materials of different densities and shapes, allowing even trace active additives to be uniformly distributed in large batches.
2. Low Shear & Wide Adaptability: Features gentle mixing and low power consumption. It not only protects the integrity of fragile particles but also effortlessly handles the friction and pressure generated by highly viscous products.
3. High Feed Volume Flexibility: Operates stably with a filling volume anywhere between 15% and 100%. Varying the feed amount does not alter or degrade the equipment's operational performance.

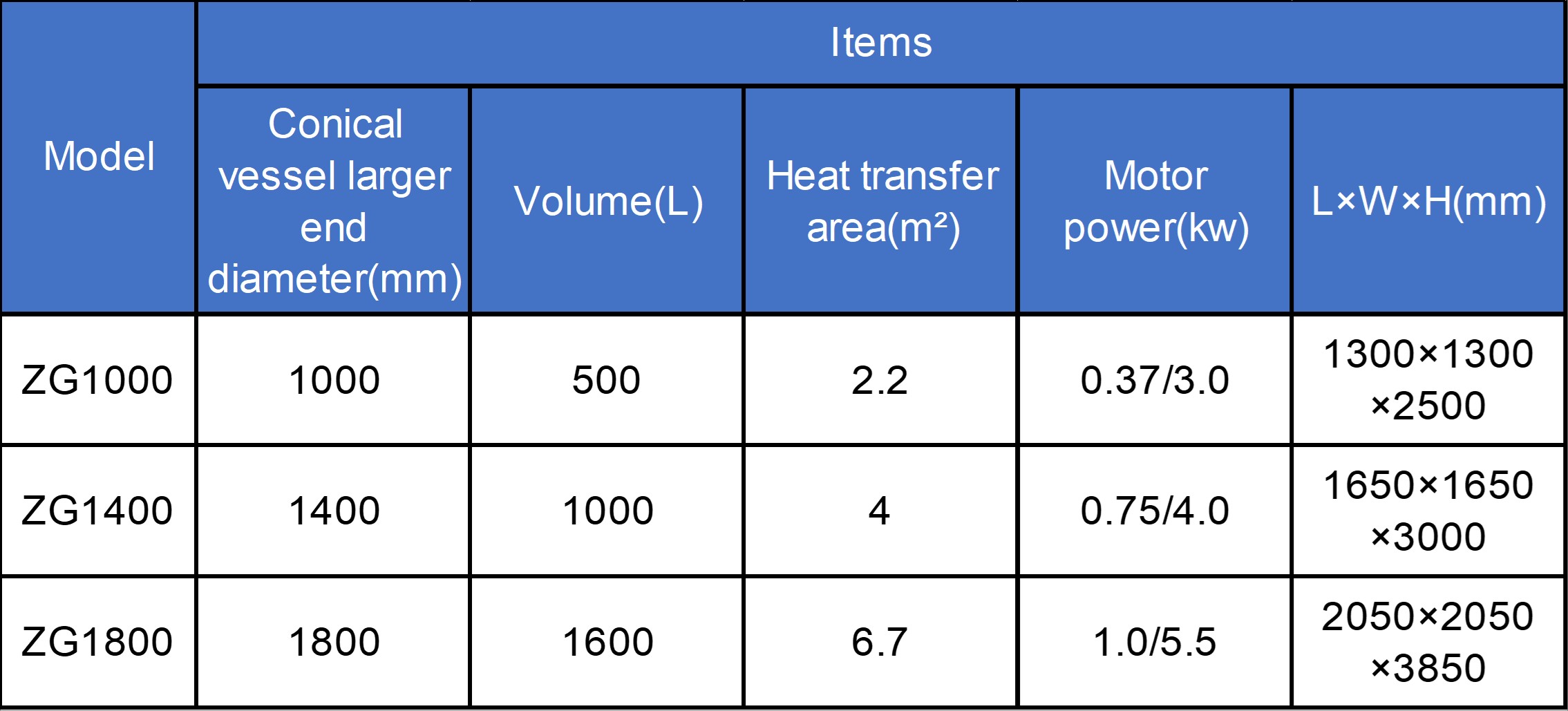

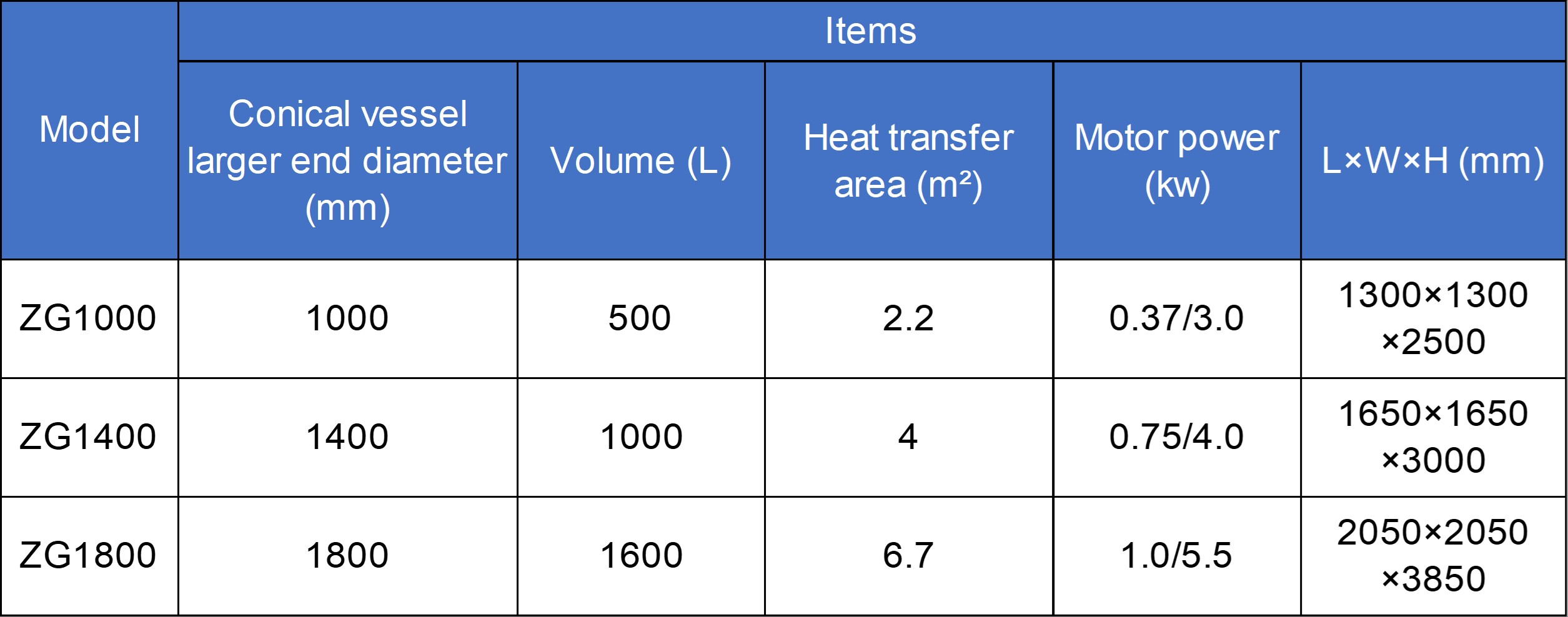

TECHNICAL SPECIFICATIONS TABLE
