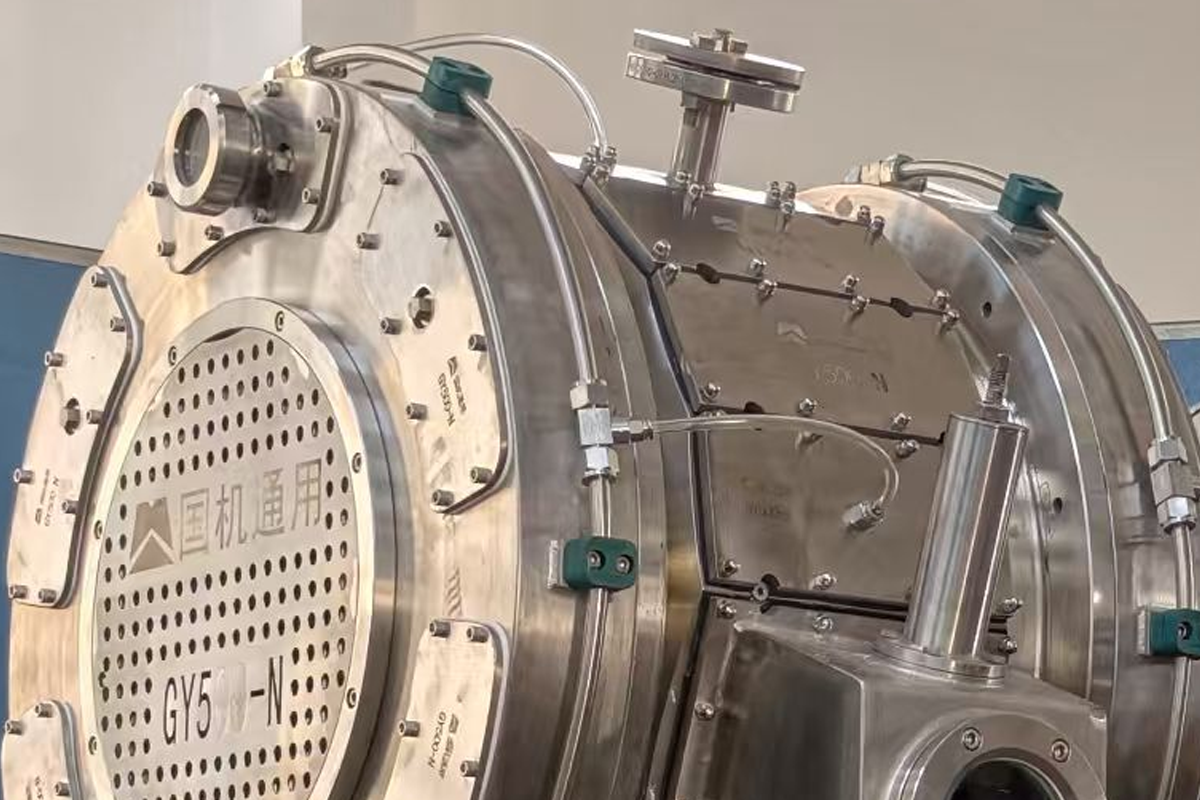

GY ROTARY PRESSURE FILTER
High-Performance, Fully Enclosed Continuous Filtration for Hazardous and Hard-to-Filter Materials.
Engineered for ultimate safety and maximum throughput. Delivering up to 0.6 MPa of filtration pressure and a massive capacity of 100 tons of filter cake per hour, the GY Series provides an uninterrupted cycle of filtration, washing, and drying in a strictly enclosed, explosion-proof environment.
PRODUCT INTRODUCTION
The GY Continuous Rotary Pressure Filter features a completely enclosed structure, making it the perfect choice for environments handling volatile solvents, toxic or hazardous materials, and demanding safety containment. It delivers exceptional results not only for granular and easy-to-filter suspensions but also for incredibly fine, sticky, and difficult-to-filter harsh conditions.

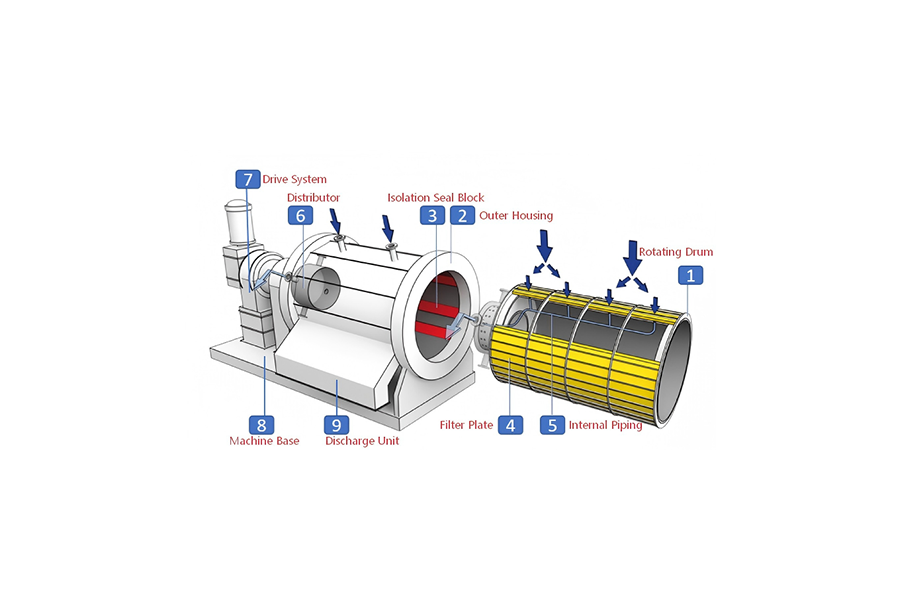

The core of the system is a rotating drum divided into a series of specialized segmented chambers. Suspensions are continuously fed into these chambers under pressure. As the drum rotates, the materials undergo synchronized, continuous stages of pressure filtration, multi-stage washing, extraction, and blow-drying. Finally, the filter cake is automatically discharged, valuable solids are recovered, and the filter mesh is regenerated—all within a single continuous cycle, accommodating both continuous and batch processing requirements.
TECHNICAL HIGHLIGHTS
· High-Efficiency Continuous Cycle
Achieves filtration, washing, blow-drying, complete drying, cake discharge, and mesh regeneration entirely within one rotational cycle, maximizing operational efficiency.
· High-Pressure Capability for Difficult Materials
Operates at a maximum filtration pressure of 0.6 MPa. Combined with controllable cake thickness (enabling thin-cake filtration), it exponentially improves the processing efficiency of fine and highly viscous suspensions.

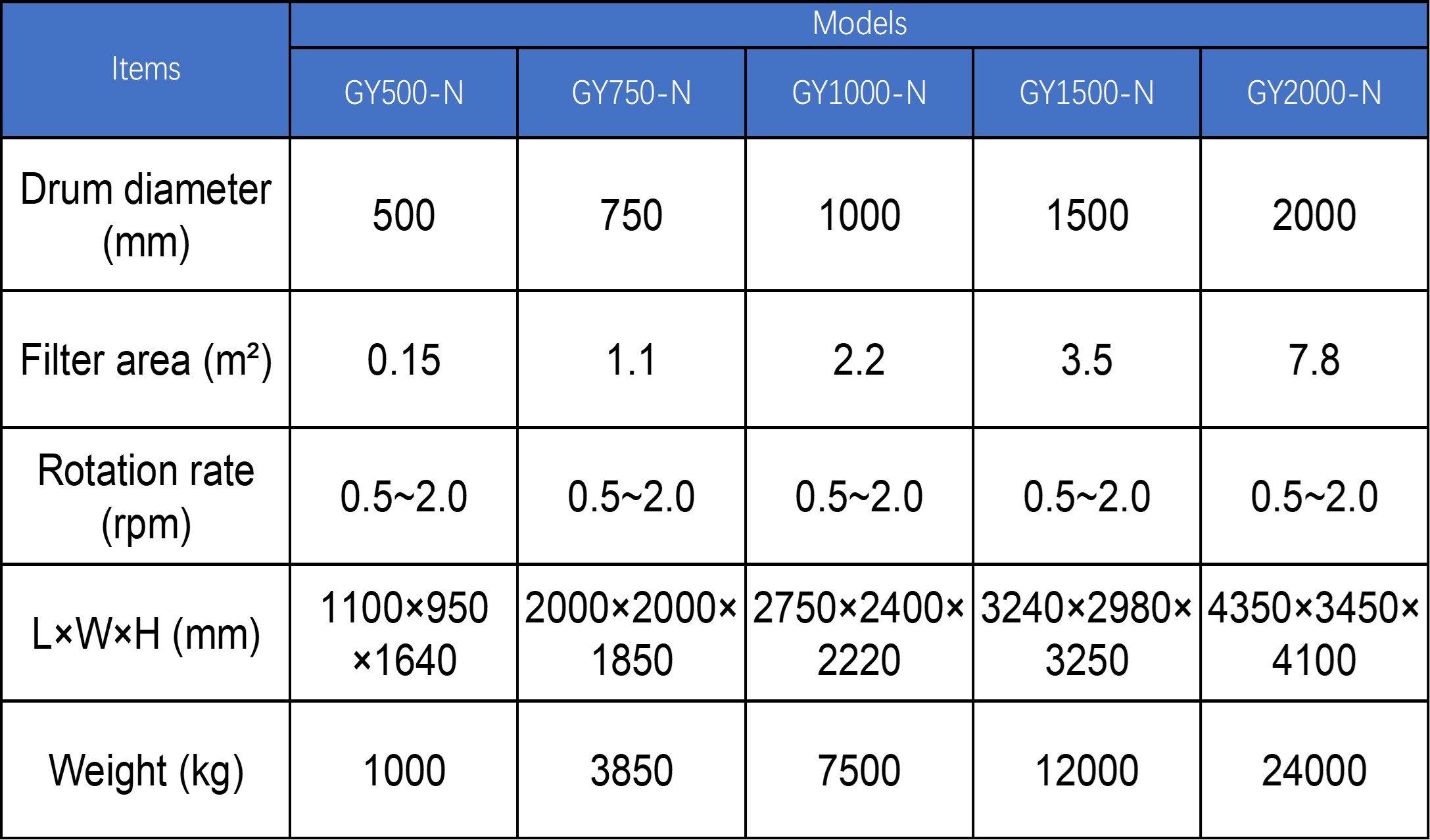

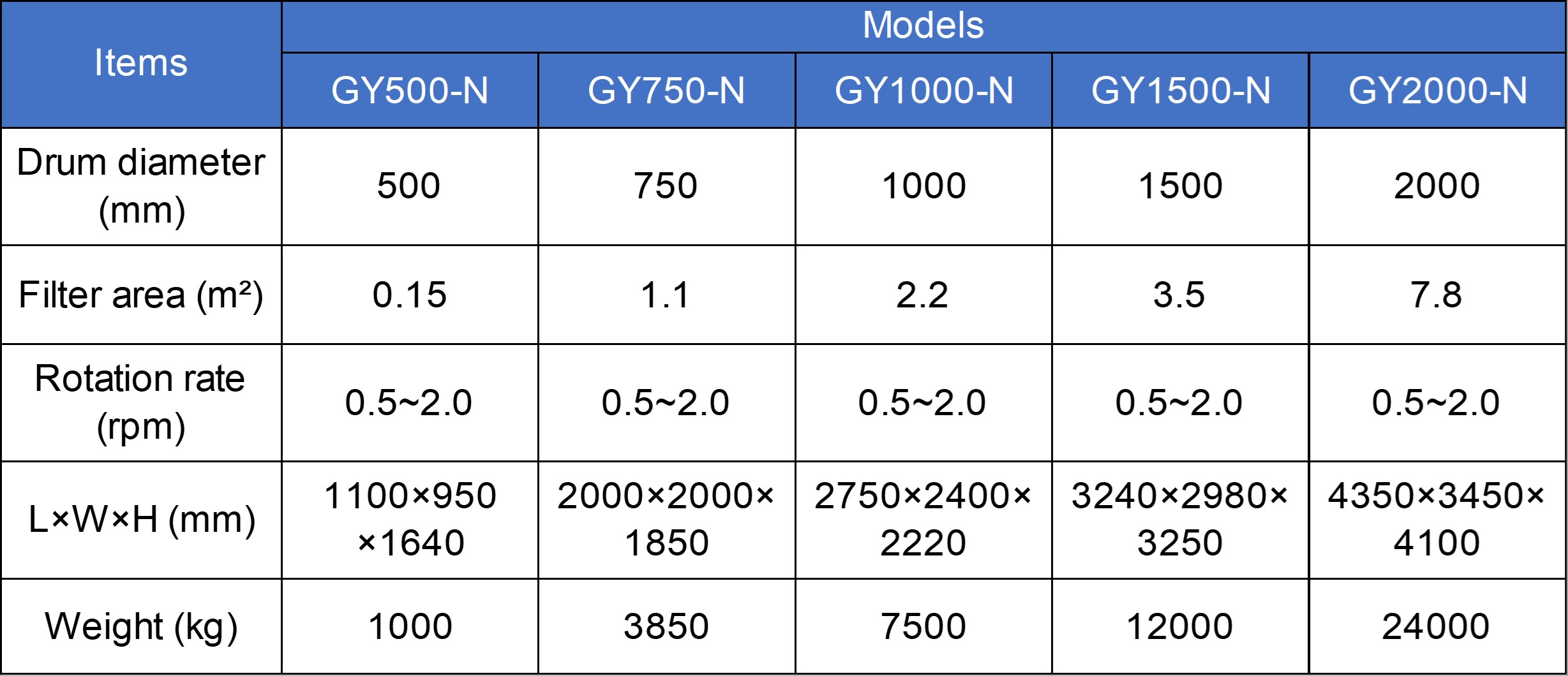

TECHNICAL SPECIFICATIONS TABLE
