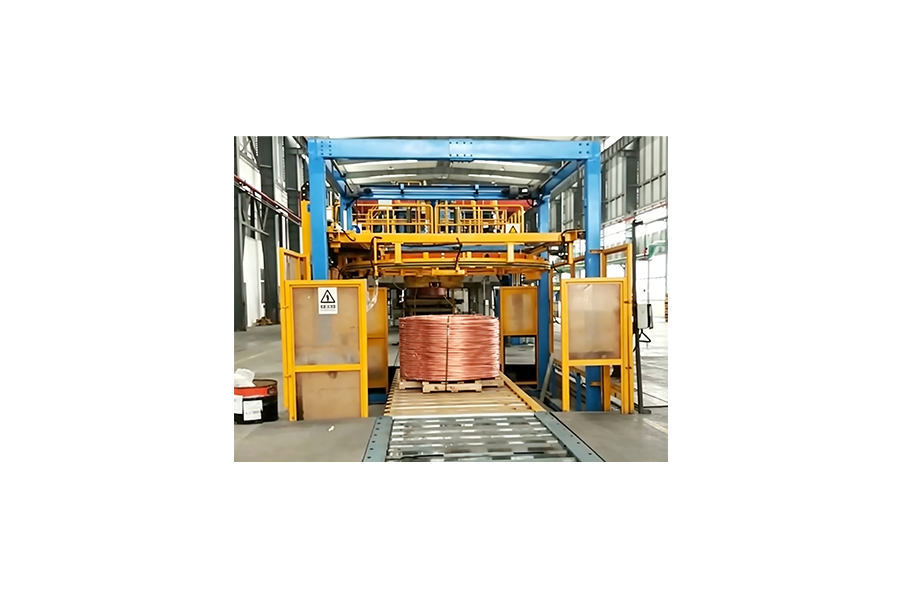

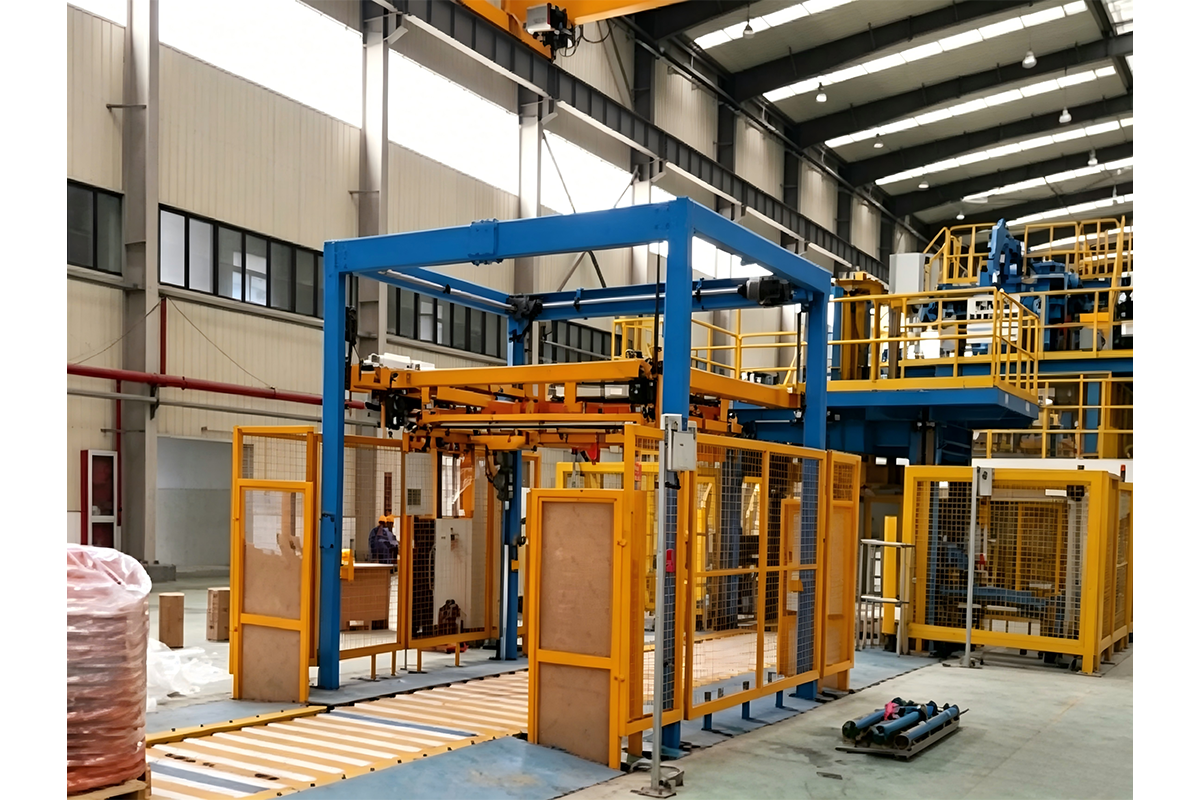

Overview: The Automatic Pallet Dispenser (also known as a Pallet Magazine) is an essential automated system for the logistics, warehousing, and industrial manufacturing sectors. It completely automates the process of unstacking standard pallets, eliminating the need for traditional manual lifting and significantly streamlining operational workflows.

Operational Workflow: The dispensing process is driven by a precision lifting and guiding system. When sensors detect that the outfeed conveyor is empty, the lifting system lowers the entire pallet stack onto the conveyor line. The rotary fork mechanism then retracts, and the stack is lifted slightly. Next, the rotary forks insert into the second pallet from the bottom and lift the remaining stack upwards, successfully separating the single bottom pallet. A signal is then transmitted to the conveyor line, which transports the separated pallet out, completing one fully automated dispensing cycle.
