LGLZ PLATE-TYPE BAG
DISCHARGE
Scraper + Pull-Bag Dual-Effect Discharge, Residue-Free Explosion-Proof Solid-Liquid Separation Centrifuge
Patented second-generation pull-bag mechanism, dual guarantee of scraping and residue removal, stable and safe operation, suitable for solid-liquid separation of toxic, harmful and fine materials in chemical, metallurgical, food, pharmaceutical, environmental protection and other industries.
PRODUCT INTRODUCTION

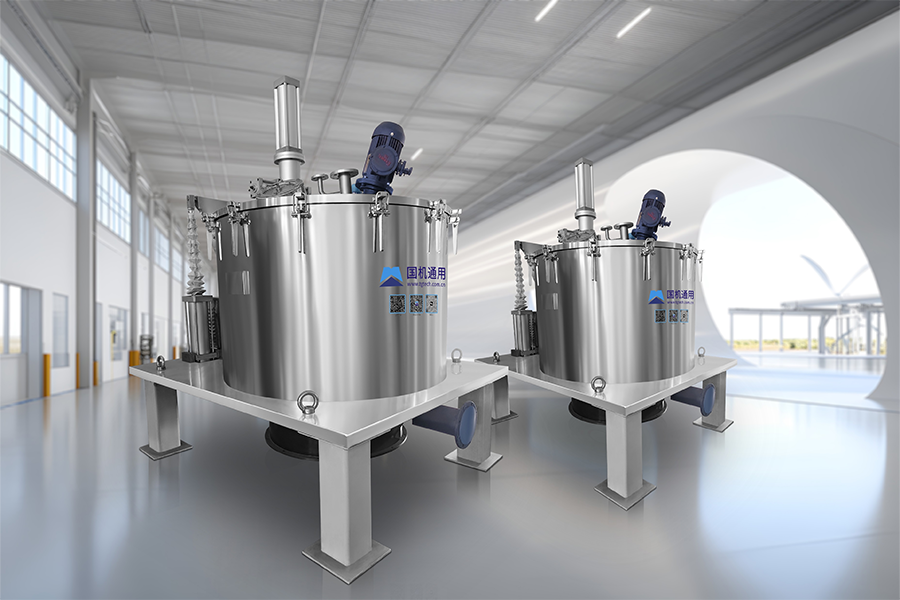

The LGLZ Automatic Pull-Filter-Bag-Discharge Centrifuge is a patented, second-generation pull-bag mechanism, batch centrifugal filtration solid-liquid separation equipment. During discharge, the scraper acts first, and most materials are discharged out of the machine through the discharge hole at the bottom of the drum under the action of the scraper. The residual material layer is thoroughly removed by the pneumatic pull-bag mechanism inside the drum through oscillation.
Main applications:
Chemical industry: Titanium dioxide, arsenic, carbon, cyanic acid, hydrazine, malic acid, sodium sulfite, PVC, barium (potassium) chloride, silicon carbide, sodium carbonate, mirabilite, ammonium sulfate, copper sulfate, dyes, pigments, additives, hydroxides, etc.;
Metallurgy: Nickel powder, copper powder, cobalt, etc.;
Food: Salt, monosodium glutamate, soda, starch, sugar making, chemical condiments, food additives, etc.;
Medicine: Pharmaceutical intermediates, vitamins, traditional Chinese medicine, amino acids, antibiotics, pesticides, herbicides, etc.;
Mining: Copper, zinc, aluminum, lead and other mineral powders, various gypsums, metal refining, etc.;
Environmental protection: Dehydration of acid-discharged gypsum and sewer sludge.
TECHNICAL HIGHLIGHTS
Second-generation pull-bag structure, no damage to main shaft strength, high safety and reliability
Finished drum, tapered distributor for uniform distribution, elastic vibration isolator, thickened flat plate
Larger and more controllable pull-bag force, obvious discharge effect
Mechanical material level sensor, equipped with electrical control systems such as automatic valve, PLC, touch screen and electrical braking

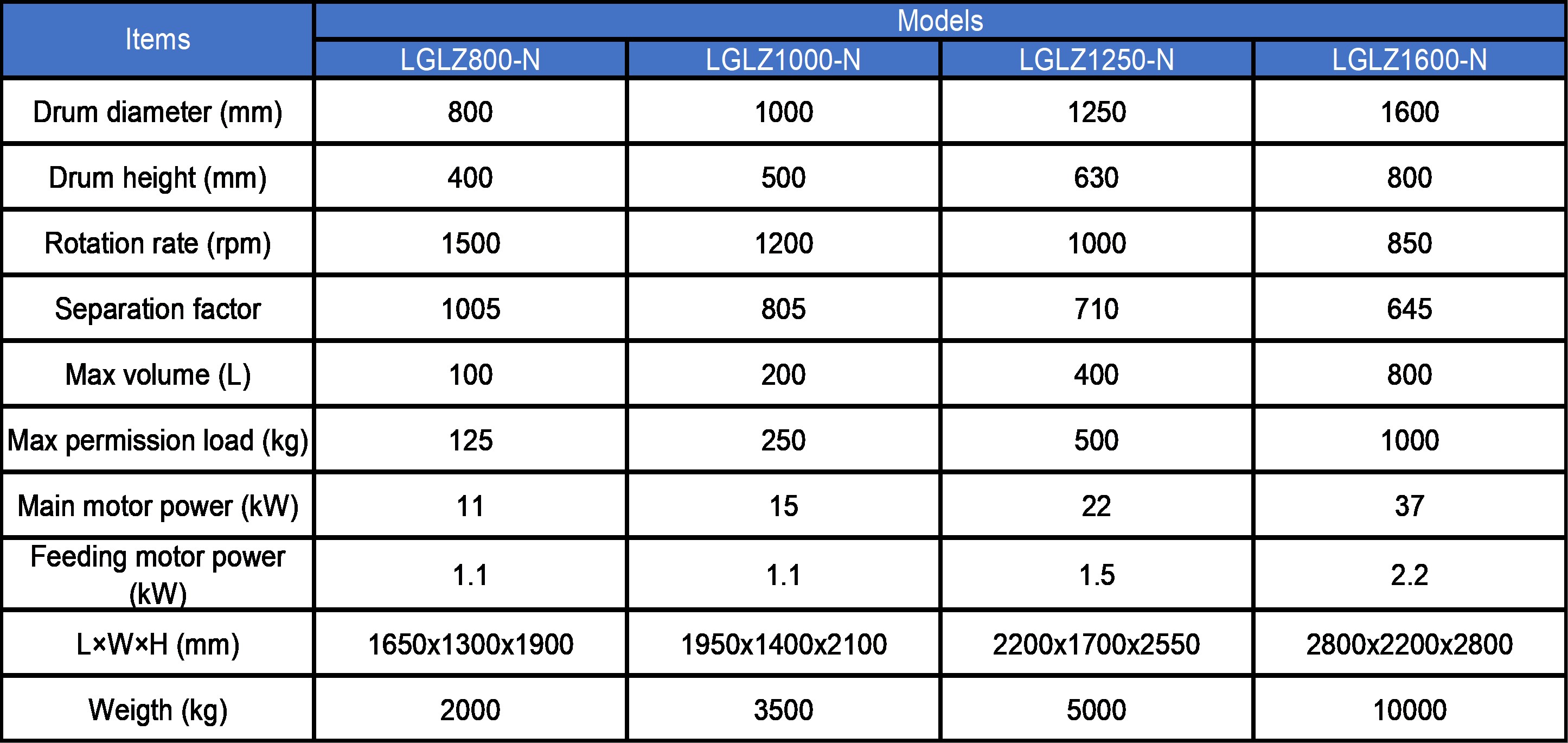

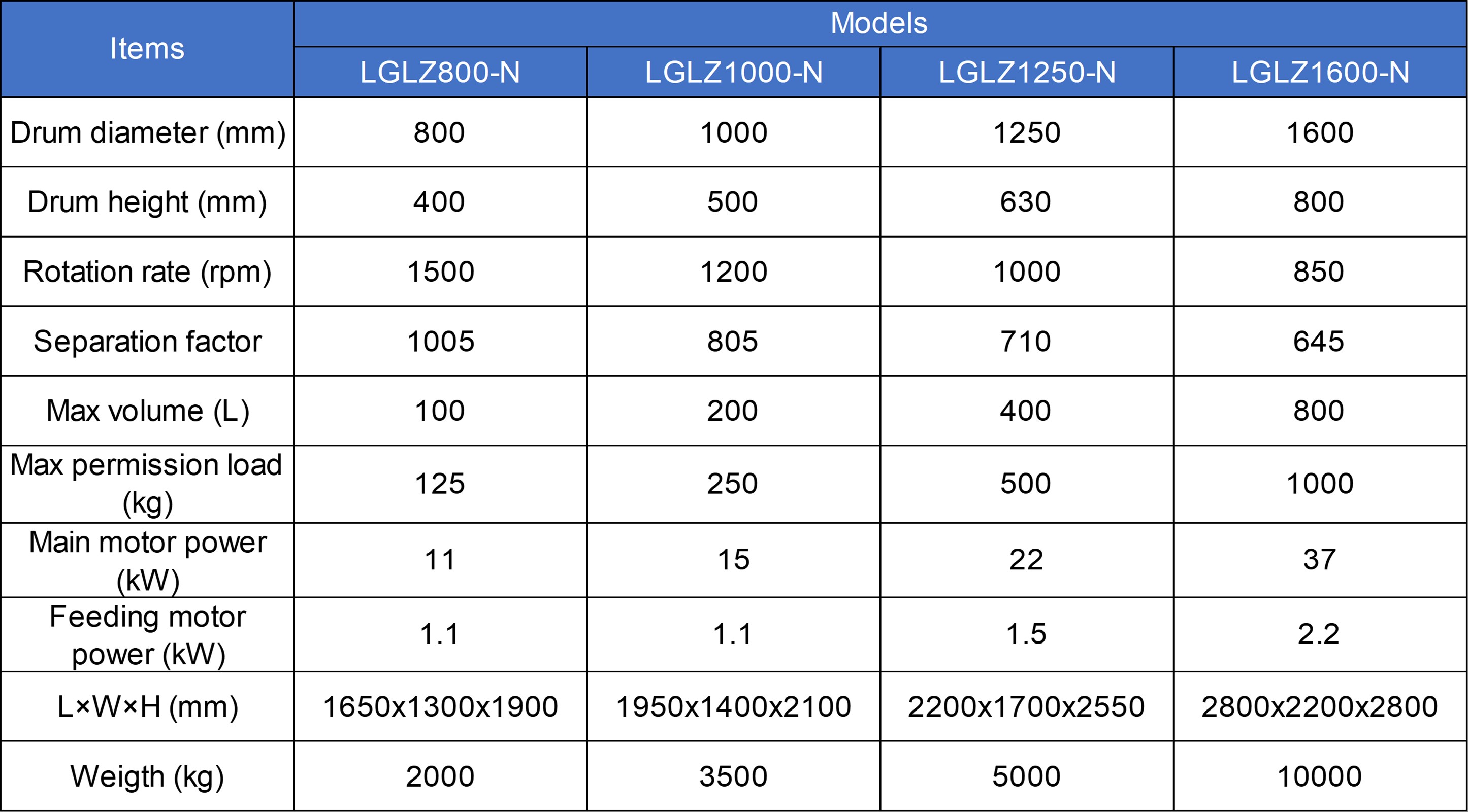

TECHNICAL SPECIFICATIONS TABLE
