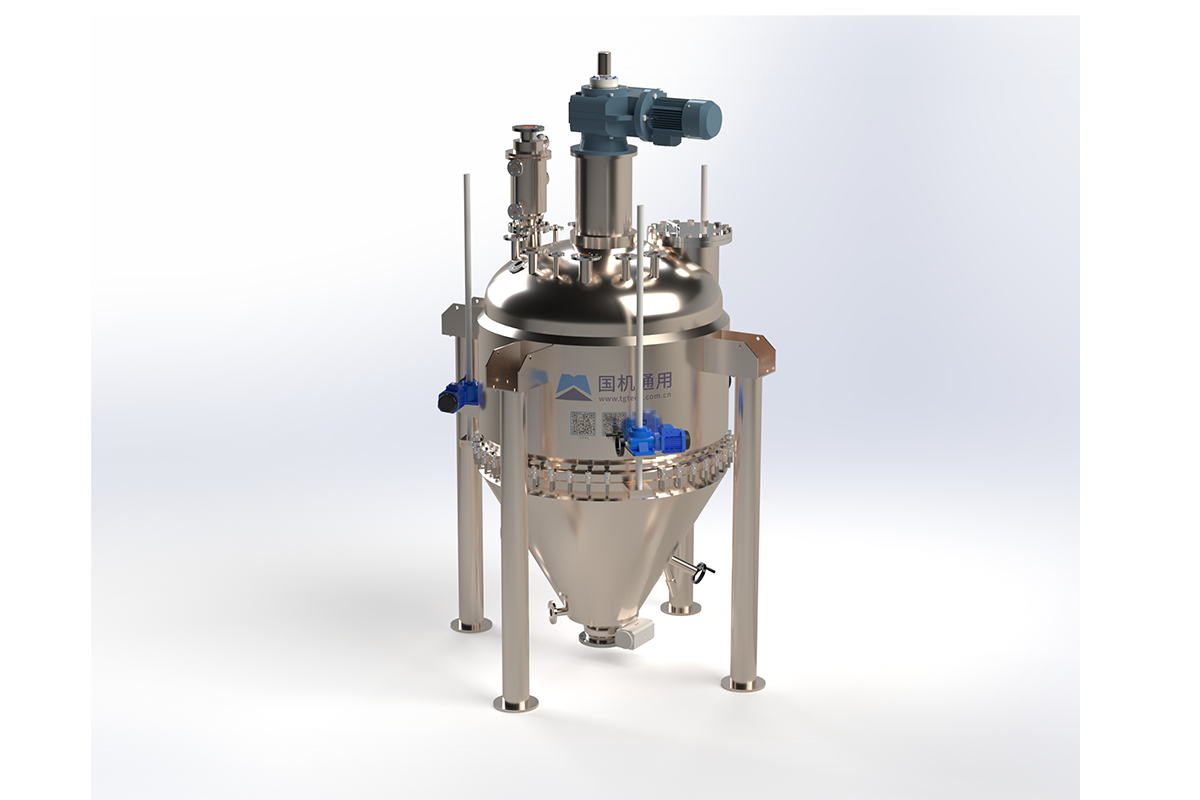

MYZ CYLINDRICAL-CONICAL FILTER DRYER
Fully Enclosed, Multi-Functional Filtration, Washing, and Drying for Clean and High-Risk Applications.
An advanced batch-type solid-liquid processing equipment featuring a unique cylindrical and conical vessel design. It seamlessly integrates core processes to eliminate material transfer, drastically minimizing contamination risks, product loss, and energy consumption.
PRODUCT INTRODUCTION
The MYZ Cylindrical-Conical 3-in-1 Filter Dryer (also widely known as a Conical Filter-Washer-Dryer) integrates pressure or vacuum filtration, re-slurry washing, and vacuum drying within a single highly engineered vessel. Distinct from traditional flat-bottom designs, its conical bottom significantly increases the active filtration area.
TECHNICAL HIGHLIGHTS
· Unique Conical Design & Superior Agitation

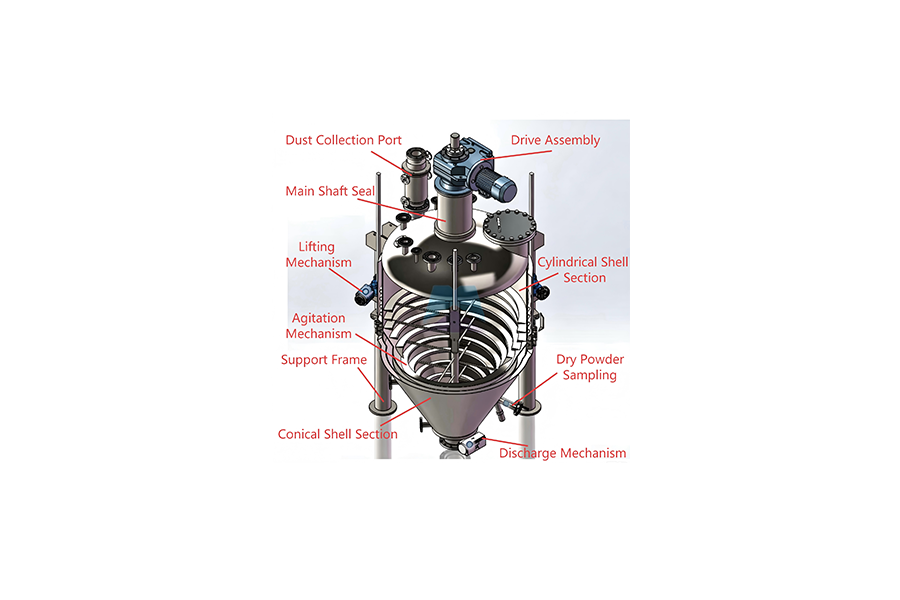

Features an upper cylinder and a lower conical filtration zone equipped with a conical sintered metal mesh (1-50μm precision). The central hollow shaft utilizes a variable-angle hollow spiral ribbon agitator. This scrapes the wall for thin-cake filtration, thoroughly re-slurries during washing, and continuously turns the cake during drying to maximize heat transfer.
· GMP/FDA Compliant Enclosed Operation
Operates in a completely sealed environment, strictly eliminating dust and solvent leakage. It is perfectly suited for flammable, explosive, highly toxic, sterile, and easily oxidized materials, such as food, pharmaceuticals, and biological products.

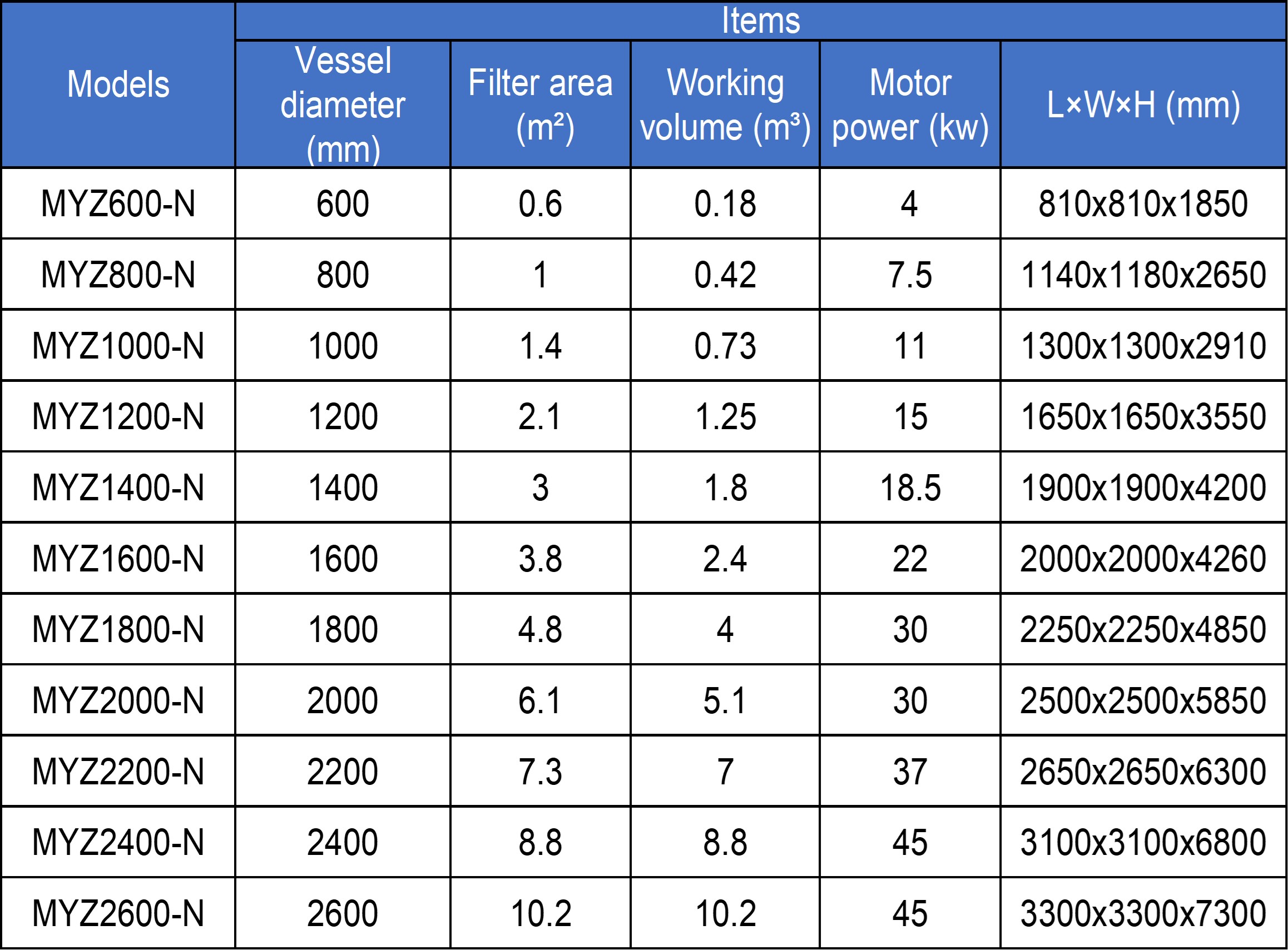

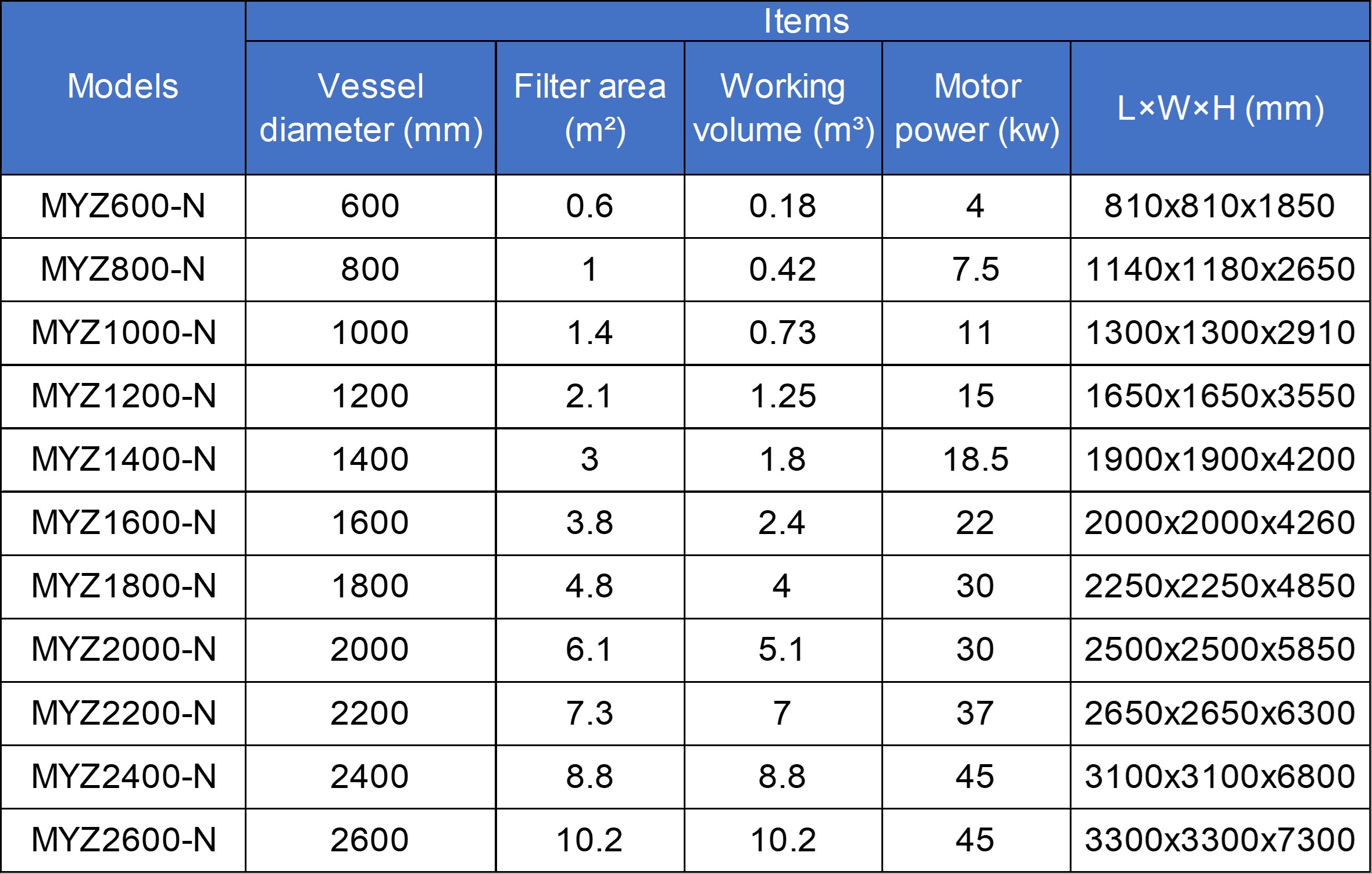

TECHNICAL SPECIFICATIONS TABLE
DOWNLOAD CENTER
APPLICATION CASES
CTX Top-suspended Centrifugal Extraction System for Metal Recovery of Used Battery
Multi-stage counter-current CTX overhung centrifugal extractors enhance metal extraction rate and purity for waste battery hydrometallurgy, lowering production costs.
VIEW TECH SPECS
Application of MY filter/dryer machine in ternary precursor production
The MY filter-washing all-in-one is widely used in lithium battery precursor production, reducing washing liquid consumption via enclosed automated operation.
VIEW TECH SPECS
MY filter/dryer is used for three-way anode material recovery
Our proprietary MY filter/dryer integrates filtration, washing and drying for ternary cathode recycling with fully enclosed automatic operation.
VIEW TECH SPECS
